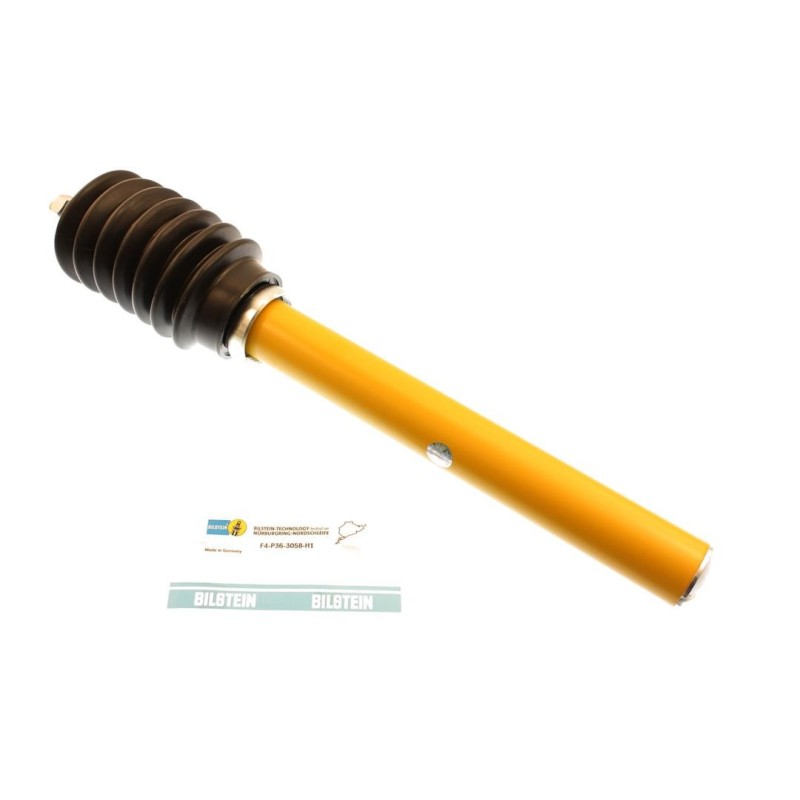

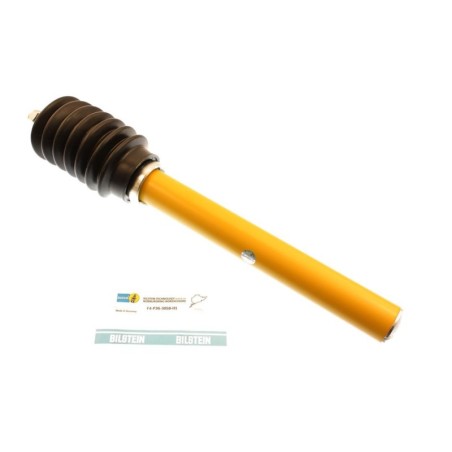

Bilstein 0'' RearShock Absorber for 1988-1992 Audi 80 Quattro

34-030585 Bilstein Shock Absorber


Extended length, in. :20.51 Inch
Collapsed length, in. :17.52 Inch
Upper mount: Stud
Lower Mount: Base Cup
Shock Absorber; B8 (SP) Series; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; With Shock Boots; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 20.51 Inch Compressed Length (IN): 17.52 Inch Upper Mounting Style: Stud Lower Mounting Style: Base Cup Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1.41 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5 Bilstein B8 Performance Plus shock absorbers and struts deliver absolute mastery of the road surface for the performance-minded driver. Designed to push a car's suspension to its performance peak, these shocks are specifically suited for use with special lowering springs in combination with anti-sway bars or other suspension upgrades. Features & Benefits Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions Marked Improvement In Safety And Performance Without Additional Spring Changes Bilstein Gas Pressure Technology Bilstein Monotube/Upside Down Technology Road And Track Tested By Bilstein For Fine Tuning Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y116A00.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 20.51 Inch, Compressed Length (IN): 17.52 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Base Cup, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1.41 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
