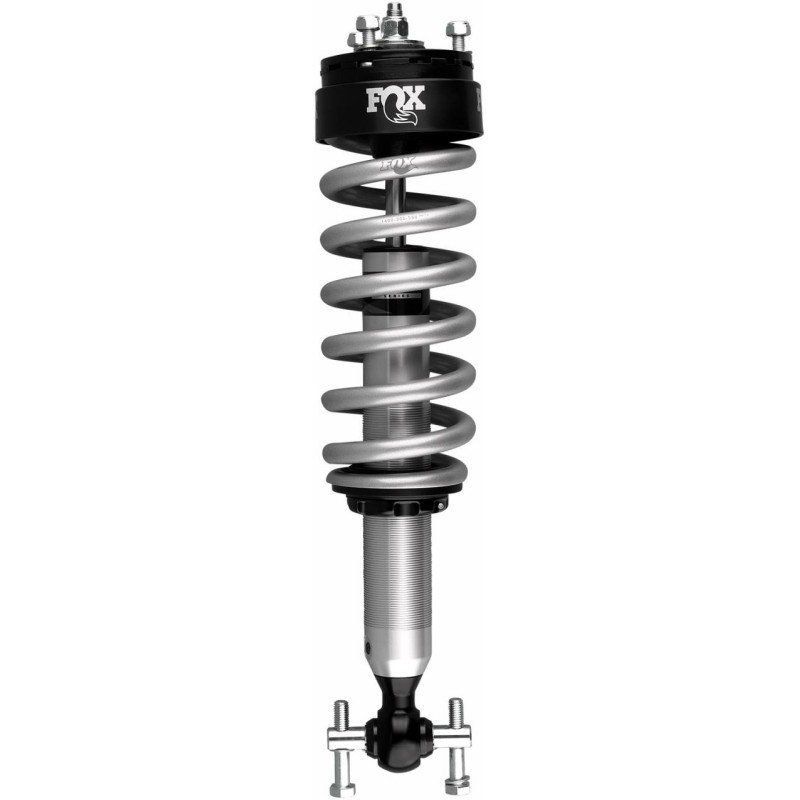

FOX 0-2'' Front Lift Coil Over Shock Absorber for 2007-2018 Chevrolet Silverado 1500 2WD/4WD

985-02-018 FOX Coil Over Shock Absorber


Upper mount: Stud
Lower Mount: Eyelet
Coil Over Shock Absorber; 2.0 Performance Series; Non Adjustable Valving; Ride Height Adjustable 0 To 2 Inch Lift; 18.96 Extended Height/ 14.89 Compressed Height; Single Flat End Coil Spring; Zinc; With External Reservoir; Single_x000D_
Attributes Adjustable: Yes Valving Type: Application Specific Valving Shock Type: Hydraulic Upper Mounting Type: Stud Lower Mounting type: Eyelet Front/Rear Drop (IN): 0 To 2 Inch Lift Extended Height (IN): 18.960 Inch Compressed Height (IN): 14.890 Inch Shock Body Color: Black/ Silver Shock Body Material: Steel Quantity: Single Spring Height (IN): Application Specific Spring Rate: Not Applicable Spring Style: Single Flat End Coil Spring Finish: Powder Coated Spring Color: Silver Spring Material: Steel_x000D_ Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to- install, 2.0 Performance Series Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions._x000D_ Features & Benefits 2.0 Inch Metal Impacted 6061-T6 Aluminum Body Will Resist Rust Over Time. Clear-Anodized For A Durable Finish Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components. 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Shaft Race-Developed High-Flow Piston Design. Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Easy-To-Install Limited 1 Year Factory Warranty And Limited 90 Day Valving Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-066_REV_F.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf_x000D_
[Adjustable: Yes, Valving Type: Application Specific Valving, Shock Type: Hydraulic, Upper Mounting Type: Stud, Lower Mounting type: Eyelet, Front/Rear Drop (IN): 0 To 2 Inch Lift, Extended Height (IN): 18.960 Inch, Compressed Height (IN): 14.890 Inch, Shock Body Color: Black/ Silver, Shock Body Material: Steel, Quantity: Single, Spring Height (IN): Application Specific, Spring Rate: Not Applicable, Spring Style: Single Flat End Coil, Spring Finish: Powder Coated, Spring Color: Silver, Spring Material: Steel]
