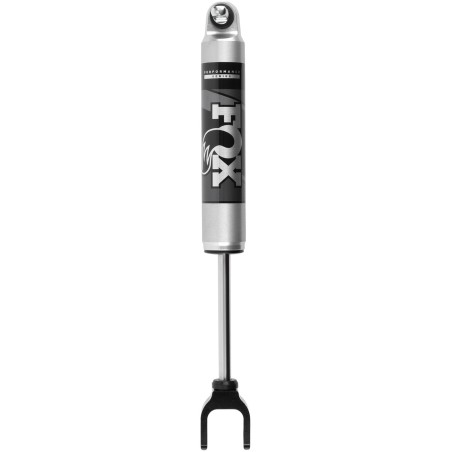

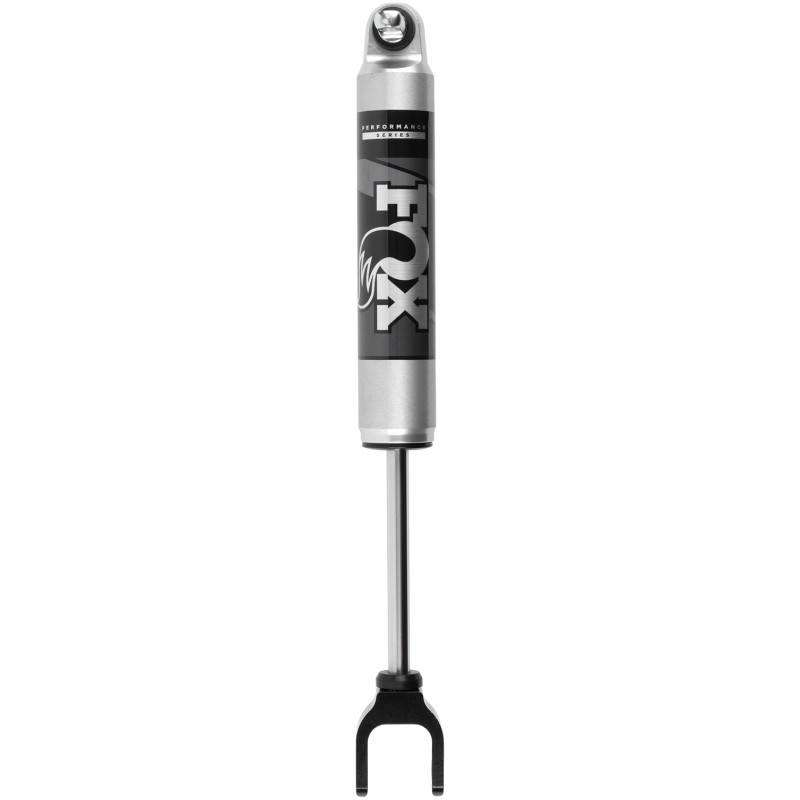

FOX 1.5-3.5'' Front Lift Shock Absorber for 2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD

985-24-189 FOX Shock Absorber


Extended length, in. :20.28 Inch
Collapsed length, in. :13.68 Inch
Upper mount: Cross Pin
Lower Mount: Clevis
Shock Absorber; 2.0 Performance Series; Hydraulic; With Internal Reservoir; 1 Year Factory Warranty; Adjustable Valving; 20.28 Extended Height/ 13.68 Compressed Height; BP5 Top Mount/ C1 Bottom Mount; Without Shock Boot; Aluminum; Single_x000D_
Attributes Type: Hydraulic With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 20.28 Inch Compressed Length (IN): 13.68 Inch Upper Mounting Style: Cross Pin Lower Mounting Style: Clevis Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Firm Compression And Adjustable Rebound Valving Rod Material: Steel Body Material: Aluminum With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5_x000D_ The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions._x000D_ Features & Benefits Body: 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Body Plating: Clear-Anodized For A Durable Finish Reservoir: Internal IFP Mono-Tube Reservoir Design Shaft: 5/8 Inch Hard Chrome Plated Heat Treated Alloy Steel Piston: Race-Developed High-Flow Piston Design Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf_x000D_
[Type: Hydraulic, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 20.28 Inch, Compressed Length (IN): 13.68 Inch, Upper Mounting Style: Cross Pin, Lower Mounting Style: Clevis, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Firm Compression And Adjustable Rebound Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
