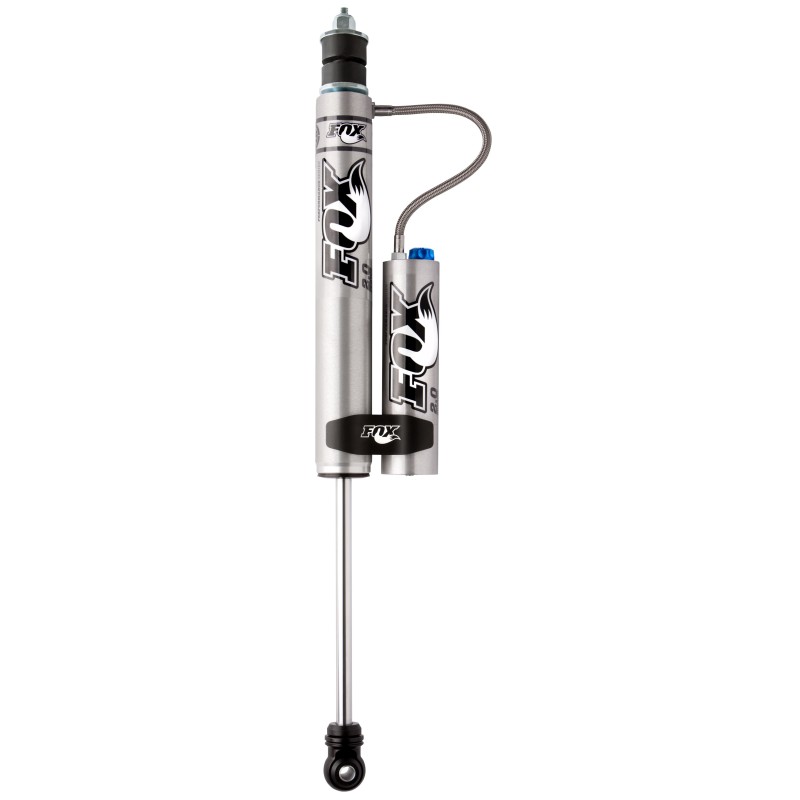

FOX 0-1'' Front Lift Shock Absorber for 2001-2006 Chevrolet Silverado 3500

980-26-959 FOX Shock Absorber


Extended length, in. :15.8 Inch
Collapsed length, in. :10.7 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Adjustable Compression Valving; Without Shock Boots; Polished Aluminum Shock Body; Single; With Reservoir Clamp_x000D_
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 15.8 Inch Compressed Length (IN): 10.7 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Semi-Universal Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5_x000D_ The aluminum bodied 2.0 Performance Series Adjustable Reservoir smooth body shock delivers FOX?s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. Included CD Adjuster delivers 8 clicks of compression adjustability - from very soft to very firm. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions._x000D_ Features & Benefits Body - Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time Body Plating - Clear-Anodized For A Durable Finish Components - Black Anodized, CNC-Machined 6061-T6 Billet Aluminum 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Race-Developed High-Flow Piston Design Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSReservoir_Exploded_A.pdf_x000D_
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 15.8 Inch, Compressed Length (IN): 10.7 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Semi-Universal, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
