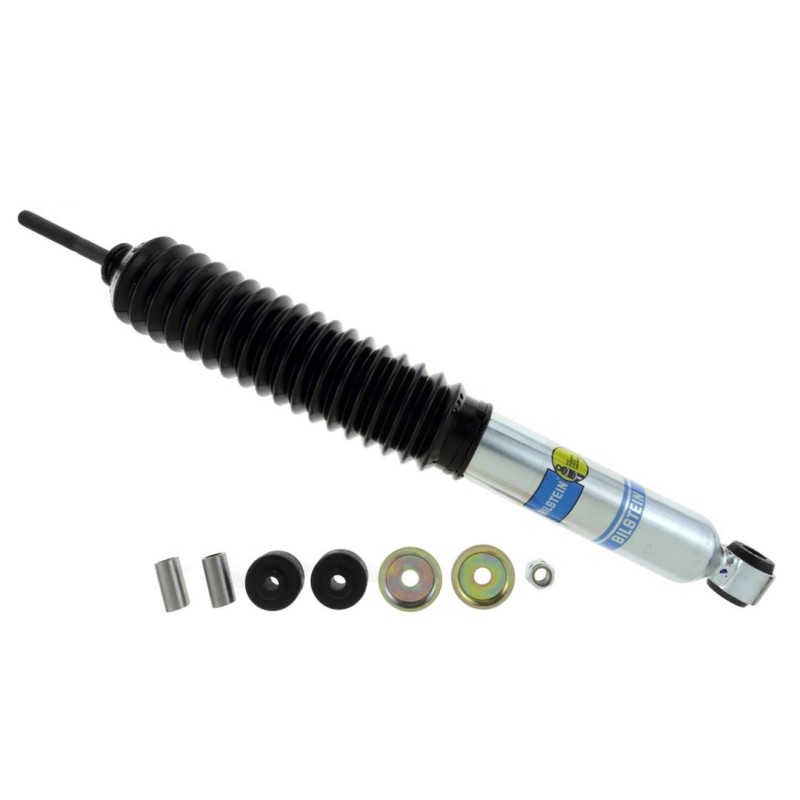

Bilstein 4'' Front Lift Shock Absorber for 1984-1990 Ford Bronco II 2WD/4WD

24-185493 Bilstein Shock Absorber


Extended length, in. :18.98 Inch
Collapsed length, in. :12.17 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; 12.17 Inch Collapsed Length/ 18.98 Inch Extended Length; Stem Upper Mount/ Eye Lower Mount; With Shock Boots; Zinc Plated; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 18.98 Inch Compressed Length (IN): 12.17 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1.81 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: Yes Estimated Install Time (Hours): 0.5 The B8 5100‘s monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride. Features & Benefits Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions Zinc Plated For Resistance Against Harsh Elements Patented Digressive Valving Instantly Reacts To Changing Surface Conditions Durable Vulcanized Neoprene Rubber Bushings OEM Certified Mounting Hardware Allows For Easy Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y217A00.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 18.98 Inch, Compressed Length (IN): 12.17 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1.81 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
