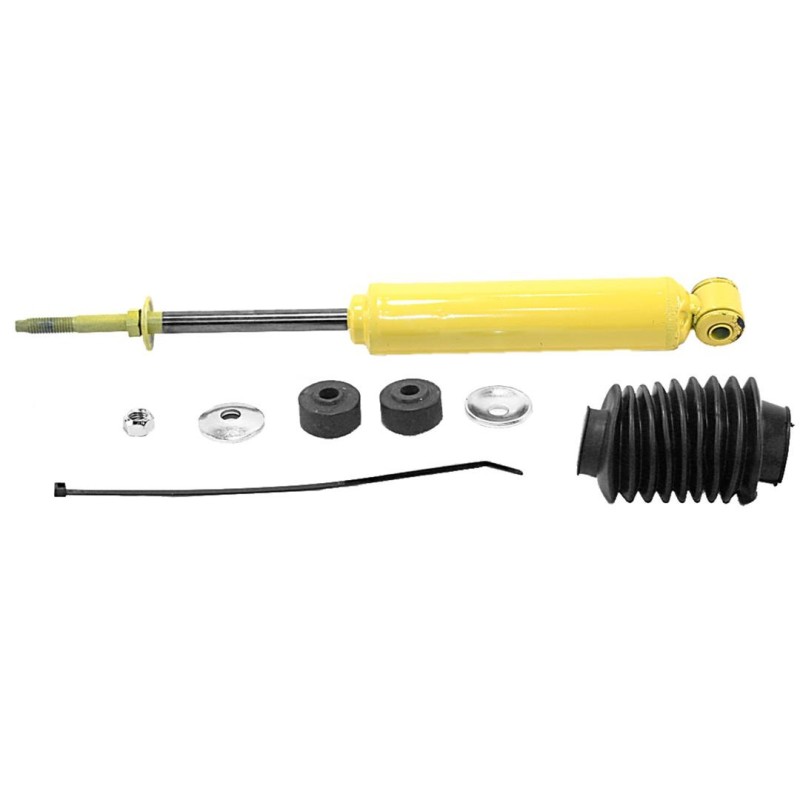

Monroe 0'' FrontShock Absorber for 1975-1991 Ford E-350 Econoline

555033 Monroe Shock Absorber


Extended length, in. :16 Inch
Collapsed length, in. :10-5/8 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Magnum ™; Nitrogen Gas Charged; OE Replacement; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 16 Inch Compressed Length (IN): 10-5/8 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 The Monroe® Gas-Magnum® RV shock absorber utilizes advanced technology, combining a gas charge and full displaced valving for superior RV performance. Adding Monroe RV shocks reduces the bounce and wander of your trailer for improved towing capacity. Monroe RV shocks also reduce the surge caused by trailer motion feedback to the tow vehicle, for a smoother, more comfortable ride. Features & Benefits Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life And Reduced Friction. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life Resistance And Arc-Welded Mounts, Provides 9,000 Pounds (4,082 Kilogram) Tensile Strength For Maximum Durability Patented Unique Hydraulic Rebound Lockout 10-Stage Full Displaced Valving Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 16 Inch, Compressed Length (IN): 10-5/8 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
