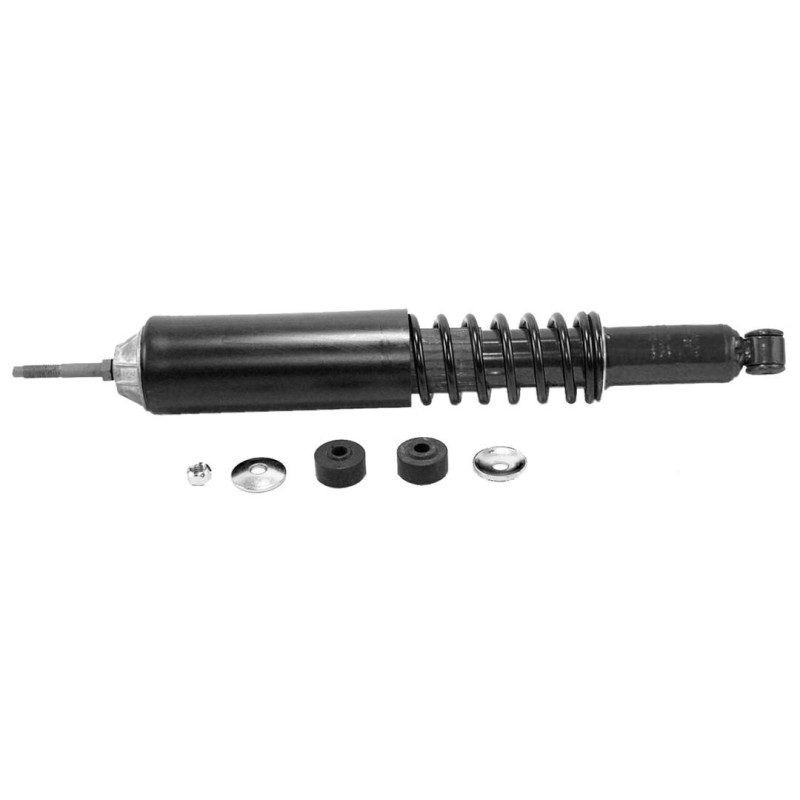

Monroe 0'' RearShock Absorber for 1992-1998 Ford E-350 Econoline

555010 Monroe Shock Absorber


Extended length, in. :22-1/8 Inch
Collapsed length, in. :13-1/2 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Magnum ™; OE Replacement; Nitrogen Gas Charged; For Towing And Hauling; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 22-1/8 Inch Compressed Length (IN): 13-1/2 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Iron Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 The Monroe® Gas-Magnum® RV shock absorber utilizes advanced technology, combining a gas charge and full displaced valving for superior RV performance. They offer superior comfort for normal driving and deliver extra control when operating conditions get more demanding. Features & Benefits Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life And Reduced Friction. Assist In Maintaining Ride Height When Up To 1,200 Pounds Of Additional Weight Is Loaded Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units. Adjust Rapidly To Changing Road And Weight Conditions, Delivering Enhanced Control With Uncompromised Ride Comfort Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat Resistance And Arc-Welded Mounts, Provides 9,000 Pounds (4,082 Kilogram) Tensile Strength For Maximum Durability Patented Unique Hydraulic Rebound Lockout 10-Stage Full Displaced Valving Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 22-1/8 Inch, Compressed Length (IN): 13-1/2 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Iron, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
