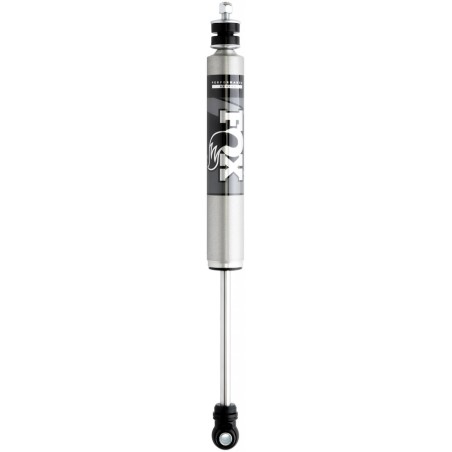

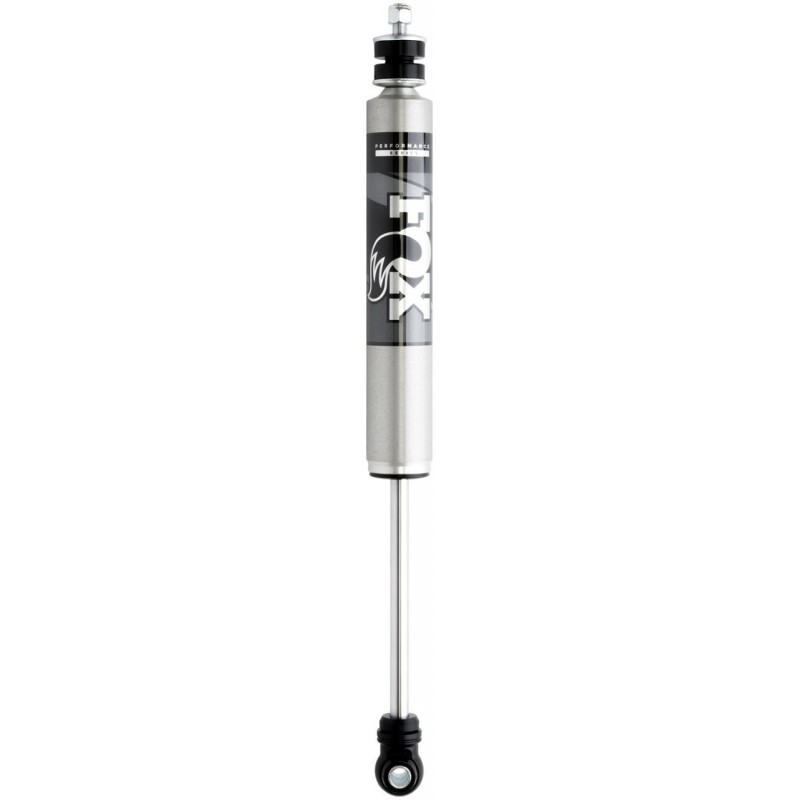

FOX 0-1.5'' Rear Lift Shock Absorber for 1999-2019 Ford E-350 Super Duty

985-24-198 FOX Shock Absorber


Extended length, in. :24.97 Inch
Collapsed length, in. :16.85 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; Without Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single_x000D_
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 24.97 Inch Compressed Length (IN): 16.85 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Semi-Universal Rod Diameter (IN): 5/8 Inch Valving Type: Non Adjustable Valving Rod Material: Steel Body Material: Aluminum With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5_x000D_ The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions._x000D_ Features & Benefits Body : 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Body Plating : Clear-Anodized For A Durable Finish Reservoir : Internal IFP Mono-Tube Reservoir Design Componentents :Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Piston: Race-Developed High-Flow Piston Design Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Bushing : Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf_x000D_
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 24.97 Inch, Compressed Length (IN): 16.85 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Semi-Universal, Rod Diameter (IN): 5/8 Inch, Valving Type: Non Adjustable Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
