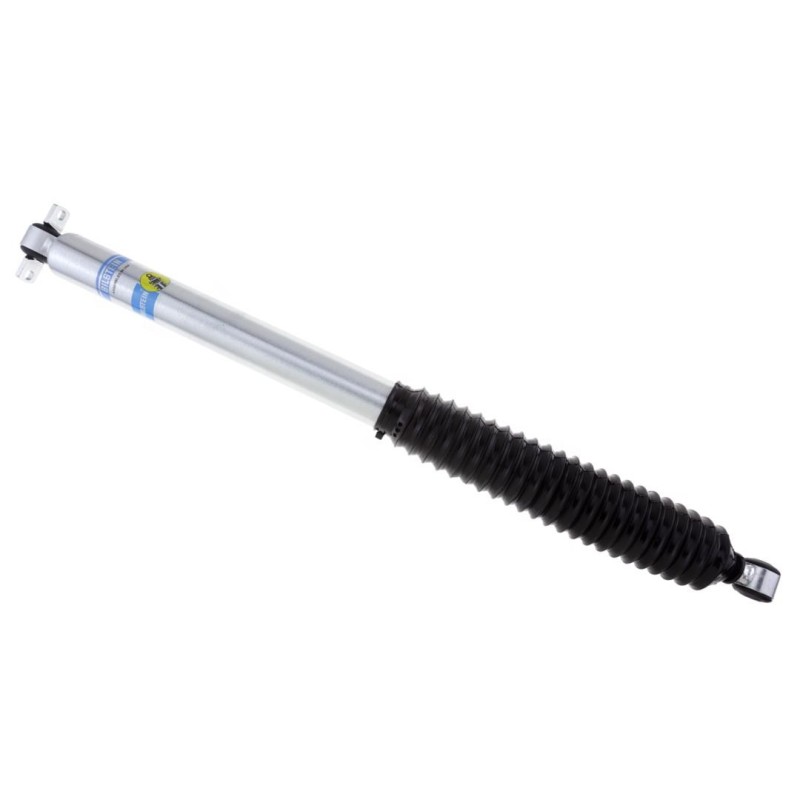

Bilstein 3-5'' Rear Lift Shock Absorber for 2000-2005 Ford Excursion 4WD

33-236964 Bilstein Shock Absorber


Extended length, in. :32.01 Inch
Collapsed length, in. :20.28 Inch
Upper mount: Cross Pin
Lower Mount: Eyelet
Shock Absorber; B8 5100 Series; Nitrogen Gas Charged; Without Reservoir; Limited 90 Day Warranty; Non Adjustable Valving; 32.01 Inch Extended Height/ 20.28 Inch Compressed Height; Loop/ Loop Mount; Zinc Plated/ With Black Bushings; Black Boot; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 32.01 Inch Compressed Length (IN): 20.28 Inch Upper Mounting Style: Cross Pin Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1/2 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5 The B8 5100‘s monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride. Features & Benefits Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions Zinc Plated For Resistance Against Harsh Elements Patented Digressive Valving Instantly Reacts To Changing Surface Conditions Durable Vulcanized Neoprene Rubber Bushings OEM Certified Mounting Hardware Allows For Easy Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/Generic_instructions_02.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/Generic_instructions_02.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 32.01 Inch, Compressed Length (IN): 20.28 Inch, Upper Mounting Style: Cross Pin, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1/2 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
