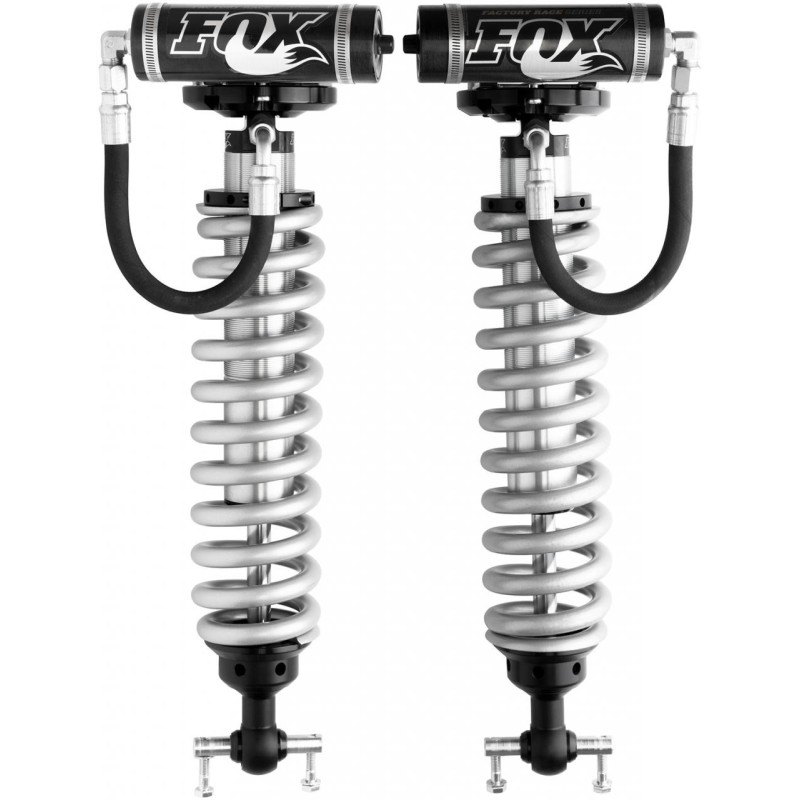

FOX 0-2'' Front Lift Coil Over Shock Absorber for 2015-2020 Ford F-150 4WD

883-02-132 FOX Coil Over Shock Absorber


Upper mount: Strut
Lower Mount: Eyelet
Coil Over Shock Absorber; 2.5 Factory Series; Non Adjustable Valving; Ride Height Adjustable 0 To 2 Inch Lift; 23.490 Inch Extended Height/ 17.950 Compressed Height; Single Flat End Coil Spring; Zinc; With External Reservoir; Set Of 2_x000D_
Attributes Adjustable: Yes Valving Type: Application Specific Valving Shock Type: Hydraulic Upper Mounting Type: Strut Lower Mounting type: Eyelet Front/Rear Drop (IN): 0 To 2 Inch Lift Extended Height (IN): 23.49 Inch Compressed Height (IN): 17.95 Inch Shock Body Color: Black/ Silver Shock Body Material: Steel Quantity: Set Of 2 Spring Height (IN): Vehicle Specific Spring Rate: Not Applicable Spring Style: Single Flat End Spring Finish: Powder Coated Spring Color: Silver Spring Material: Steel_x000D_ Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Series Coil-over Reservoir shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-overs Reservoir shocks deliver._x000D_ Features & Benefits Smooth Bore And Honed Seamless Alloy Body Zinc-Plated And Double Clear Coated For Long Lasting Finish Components - Black Anodized, CNC-Machined 6061-T6 Billet Aluminum 7/8 Inch Hardened NitroSteel® Steel Carbon Shafts 6061-T6 Hard-Anodized, High Flow Aluminum Piston Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Limited 1 Year Factory Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-156_REV_A.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.5Reservoir_Exploded_A.pdf_x000D_
[Adjustable: Yes, Valving Type: Application Specific Valving, Shock Type: Hydraulic, Upper Mounting Type: Strut, Lower Mounting type: Eyelet, Front/Rear Drop (IN): 0 To 2 Inch Lift, Extended Height (IN): 23.49 Inch, Compressed Height (IN): 17.95 Inch, Shock Body Color: Black/ Silver, Shock Body Material: Steel, Quantity: Set Of 2, Spring Height (IN): Vehicle Specific, Spring Rate: Not Applicable, Spring Style: Single Flat End, Spring Finish: Powder Coated, Spring Color: Silver, Spring Material: Steel]
