Fabtech 0'' Lift Kit for 2021-2023 Ford F-150 4WD

K2371 Fabtech Lift Kit Suspension
For [3.0] '' Lift
[Full Front and Rear]

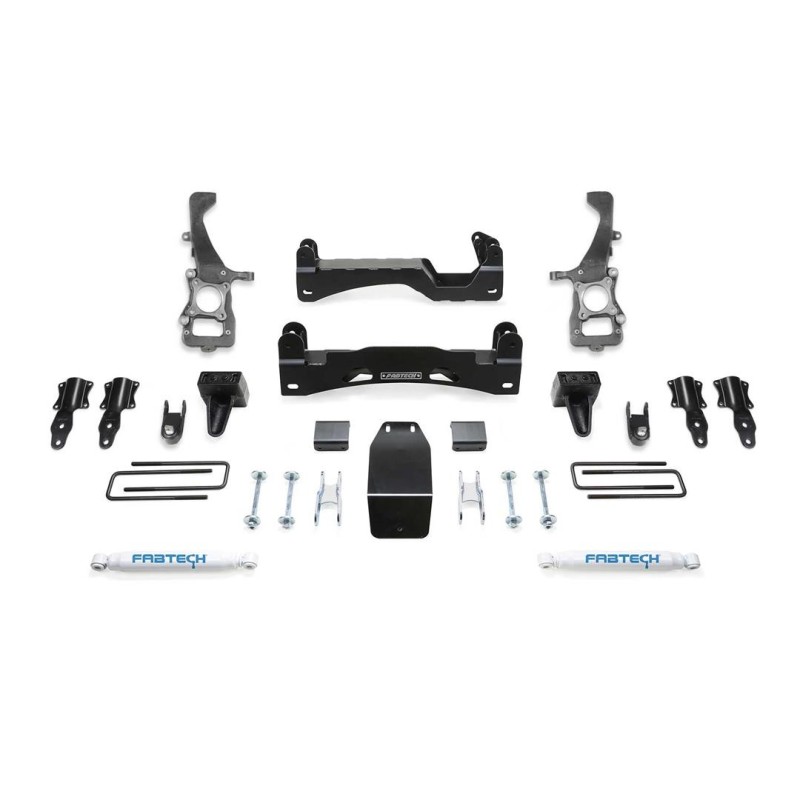

Lift Kit Suspension; 6 Inch Front Lift; 3 Inch Rear Lift; With Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; With Front And Rear Crossmembers/ Front Bump Stops/ Steering Knuckles/ Tie Rods/ Coil Over Spacers/ Skid Plate/ Stabilizer Bar Mounts/ Rear Lift Blocks And U Bolts/ Installation Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 3 Inch Front Lift Type: Coil Over Spacer Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 37 x 12.50 Shock Type: Hydraulic Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 20 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ White Shock Absorbers Fabtech's world-renowned IFS suspension design for the Ford F150 provides excellent drivability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce driver fatigue while improving the overall drivability of the vehicle. The near-stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides an excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration-free operation at high speed. The factory coilover shocks are relocated from the bottom to allow for full steering while achieving 6 Inch of lift. At the rear of the vehicle, the factory 2 Inch block is replaced with a 5 Inch Block and u-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. Features & Benefits 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension Fabtech's Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel Provides An Enhanced Driver Experience Compared To Stock And Near Stock Track Width Keeps The Tires Under The Fenders For A Clean Appearance Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability Superior Ride Quality Both On And Offroad With Excellent Damping For Offroad Use Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles Stainless Steel Body With NitroSteel ® Piston Rod Provides Maximum Corrosion Resistance And Durability Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/K2371_INS.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 3 Inch, Front Lift Type: Coil Over Spacer, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 37 x 12.50, Shock Type: Hydraulic, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 20, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ White Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22324 (F37 FTS22324); Quantity Required: 1; Lift Kit Component; Component For K2371}
, {Fabtech Motorsports FTS22326 (F37 FTS22326); Quantity Required: 1; Lift Kit Component; Component For K2371}
, {Fabtech Motorsports FTS7266 (F37 FTS7266); Quantity Required: 2; Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single}
