Fabtech 0'' Lift Kit for 2015-2020 Ford F-150 4WD

K2195DL Fabtech Lift Kit Suspension

[Full Front and Rear]

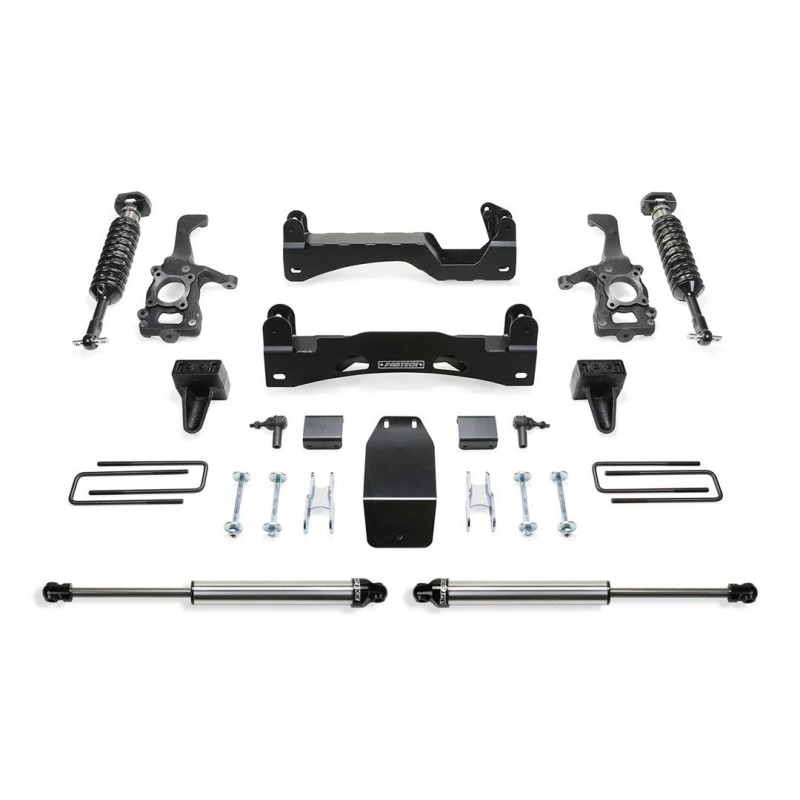

Lift Kit Suspension; Dirt Logic SS; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic SS 2.5 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Steering Knuckles/ Crossmembers With Integrated Front Differential Skid Plate/ Lift Blocks/ U Bolts/ Leaf Spring Shackles/ Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 6 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Leaf Spring Block Maximum Tire Size: 37 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 18 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers These 6 Inch systems features a heavy-duty 1/4 Inch thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad. Fabtech's extended length ductile iron steering knuckles allow use of 18 Inch, 20 Inch or 22 Inch wheels. The Performance System features a Dirt Logic 2.5 Coilovers featuring cold wound coil springs in the front and Dirt Logic 2.25 in the rear for aggressive offroad driving. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22179i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 6 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 37 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 18, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22180 (F37 FTS22180); Quantity Required: 1; Lift Kit Component; Component For Lift Kit K2194/ K2195DB}
, {Fabtech Motorsports FTS22181 (F37 FTS22181); Quantity Required: 1; Lift Kit Component; Component For Lift Kit K2195DB}
, {Fabtech Motorsports FTS221842 (F37 FTS221842); Quantity Required: 1; Coil Over Shock Absorber; Dirt Logic 2.5; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; Without}
, {Fabtech Motorsports FTS810292 (F37 FTS810292); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
