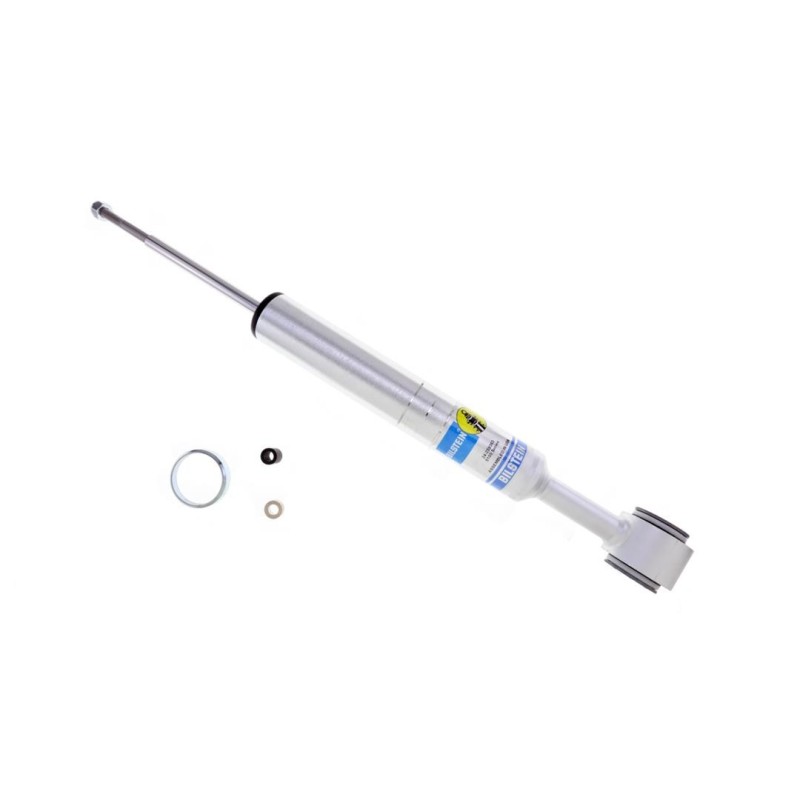

Bilstein 0-2'' Front Lift Shock Absorber for 2004-2008 Ford F-150 4WD

24-239363 Bilstein Shock Absorber


Extended length, in. :21.89 Inch
Collapsed length, in. :16.34 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; 5100 Ride Height Adjustable; 46 Millimeter; Nitrogen Gas Charged Mono Tube; Without Reservoir; Limited Lifetime Warranty; Compression And Rebound Valving; 21.89 Inch Extended Height/ 16.34 Inch Compressed Height; Stem Upper Mount/ Eye 20.3 Millimeter Lower Mount; Without Shock Boots; Silver; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 21.89 Inch Compressed Length (IN): 16.34 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1.81 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 BILSTEIN 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights the vehicles ride height can be changed anywhere between 0 to 2.5 Inch depending on application. Features & Benefits Superior Monotube Design Utilizes The Vehicle's Stock Front Coil Springs Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y294A01.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/B8_5100_RHA_Flyer.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 21.89 Inch, Compressed Length (IN): 16.34 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1.81 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
