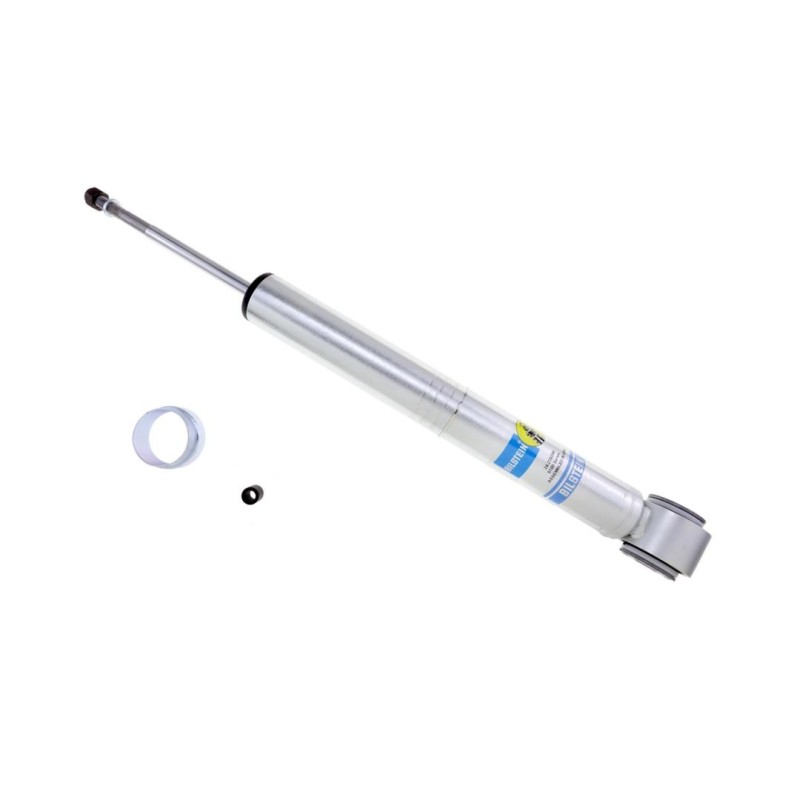

Bilstein 0-2.5'' Front Lift Shock Absorber for 2009-2013 Ford F-150 4WD/4WD

24-239394 Bilstein Shock Absorber


Extended length, in. :21.83 Inch
Collapsed length, in. :16.93 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; 5100 Ride Height Adjustable; Nitrogen Gas Charged; Limited Lifetime Warranty; Ride Height Adjustable; 16.93 Inch Collapsed Length/ 21.83 Inch Extended Length; With Shock Absorber Boots; Zinc Plated Shock Body With Black Boot; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 21.83 Inch Compressed Length (IN): 16.93 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1.81 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5 Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46 Millimeter digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0 Inch to 2.5 Inch of front end lift, depending on application. Provides increased wheel travel and improved handling! (Zinc-plated steel body, Triple-C-Technology coating). Features & Benefits An Extremely Affordable And Practical Alternative To Coil Spring Spacers BILSTEIN's Superior Monotube Design Utilizes The Vehicle's Stock Front Coil Springs Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y362A01.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 21.83 Inch, Compressed Length (IN): 16.93 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1.81 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
