Fabtech 0'' Lift Kit for 2005-2007 Ford F-250 Super Duty 4WD

K2181DL Fabtech Lift Kit Suspension

[Full Front and Rear]
Lift Kit Suspension; Dirt Logic SS; 4 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; Includes Coil Spring Spacers/ Radius Arm Drop Brackets/ Track Bar Relocation Bracket/ Lifting Blocks and U-Bolts/ Installation Sheet
Attributes Front Lift Amount (IN): 4 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Coil Spring Spacer Rear Lift Type: Leaf Spring Block Maximum Tire Size: 35 x 12.50 Shock Type: Gas Charged Wheel Backspacing (IN): 4.75 Minimum Wheel Diameter: 18 Wheel Offset (MM): -13 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4 Inch Budget System. The 4 Inch Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 Inch of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 Inch tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22150i.pdf
[Front Lift Amount (IN): 4 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Coil Spring Spacer, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 35 x 12.50, Shock Type: Gas Charged, Wheel Backspacing (IN): 4.75, Minimum Wheel Diameter: 18, Wheel Offset (MM): -13, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

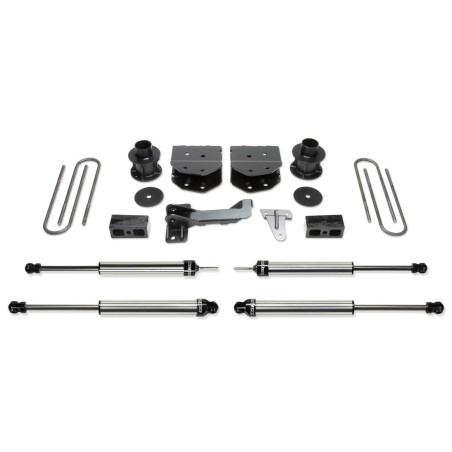

Kit components:
{Fabtech Motorsports FTS22153 (F37 FTS22153); Quantity Required: 1; Lift Kit Component; Component Box; Component Box For Lift Kit K2181/K2181DB}
, {Fabtech Motorsports FTS810052 (F37 FTS810052); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS810962 (F37 FTS810962); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
