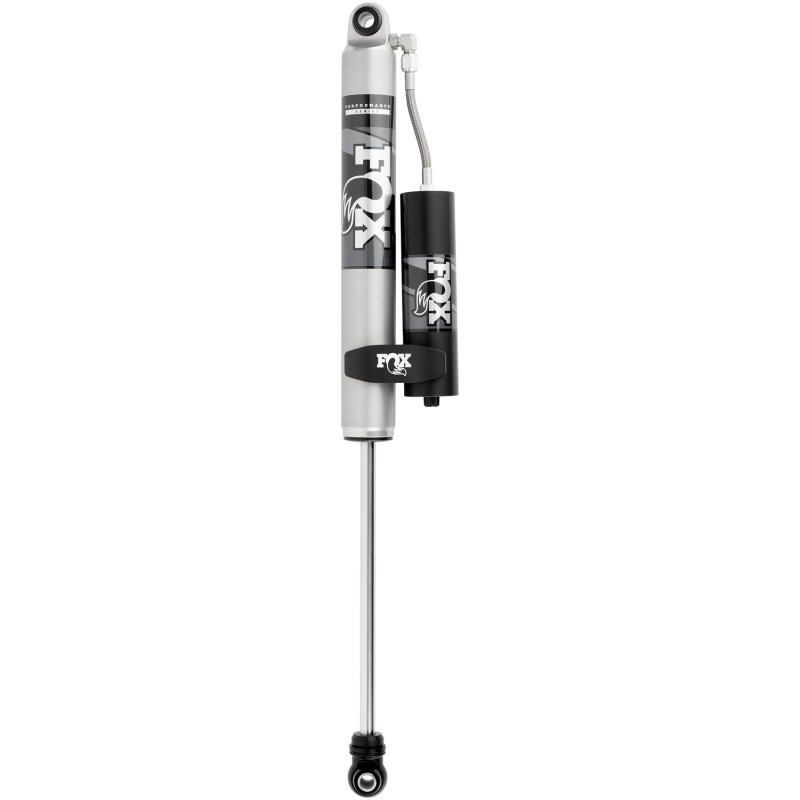

FOX 0-1'' Rear Lift Shock Absorber for 2017-2022 Ford F-250 Super Duty 4WD

985-24-174 FOX Shock Absorber


Extended length, in. :29.95 Inch
Collapsed length, in. :17.85 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Non Adjustable Valving; 30.02 Extended Height/ 17.9 Compressed Height; EB3 Top Mount/ ES1 Bottom Mount; Without Shock Boot; ALUMINUM; Single_x000D_
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 29.95 Inch Compressed Length (IN): 17.85 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5_x000D_ The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design comes with a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. Comes with black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions._x000D_ Features & Benefits Body- 2 Inch Impact Extruded 6061-T6 Aluminum Will Resist Rust Over Time Clear-Anodized For A Durable Finish 2 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized Reservoir Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Race-Developed High-Flow Piston Design Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSReservoir_Exploded_A.pdf_x000D_
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 29.95 Inch, Compressed Length (IN): 17.85 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
