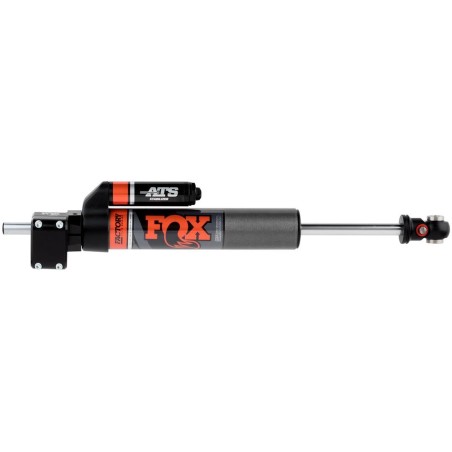

FOX 0'' Steering Stabilizer for 2017-2019 Ford F-350 Super Duty 2WD/4WD

983-02-143 FOX Steering Stabilizer


Steering Stabilizer; 2.0 Factory Series; Single; Aluminum; With Stabilizer And Clamp; With External Reservoir_x000D_
Attributes Type: Single Internal Design: Monotube Color: Black Finish: Anodized Material: Aluminum Includes Mounting Brackets: No Boot Color: No Boot Estimated Install Time (Hours): 1_x000D_ The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer. With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space._x000D_ Features & Benefits Body: 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum Body Resists Rust Over Time Body Plating: Hard-Anodized For A Durable Finish Reservoir: External Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Piston: Race-Developed High-Flow Piston Design Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation Adjustments: Adjuster - 24 Clicks Of Adjustability Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.5Reservoir_Exploded_A.pdf_x000D_
[Type: Single, Internal Design: Monotube, Color: Black, Finish: Anodized, Material: Aluminum, Includes Mounting Brackets: No, Boot Color: No Boot, Estimated Install Time (Hours): 1]
