Fabtech 0'' Lift Kit for 2008-2010 Ford F-550 Super Duty 4WD

K2052DL Fabtech Lift Kit Suspension
For [4.0] '' Lift
[Full Front and Rear]

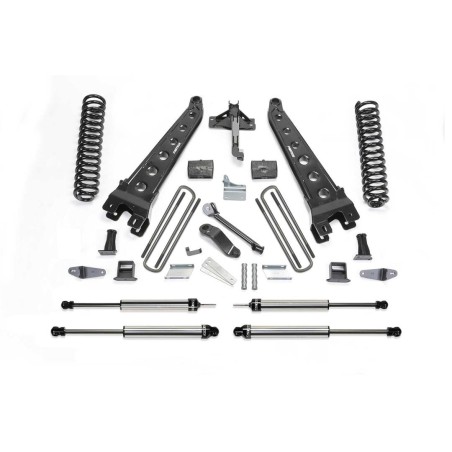

Lift Kit Suspension; Dirt Logic SS; 6 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; Includes Custom Radius Arms/ Performance Coil Springs/ Drop Pitman Arm/ Front Bump Stops/ Steering Stabilizer Drop Bracket/ Sway Bar Drop Brackets/ Track Bar Relocation Brackets/ ABS Bracket/ Brake Line Brackets/ 4 inch Lift Blocks/ Installation Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Coil Spring Rear Lift Type: Leaf Spring Block Maximum Tire Size: 35 x 11 Shock Type: Gas Charged Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Features & Benefits Provide Years Of Trouble Free Service With Superior Vehicle Ride Qualities Products Undergoes Rigorous Testing That Results In The Highest Performing To Ensure Product Quality, Fabtech Builds All Of Its Componentry In House Ensure Products Will Fit Properly During Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22124i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Coil Spring, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 35 x 11, Shock Type: Gas Charged, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22024BK (F37 FTS22024BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2010/ K20101/ K20101DB/ K20102/ K20102DB/ K2010DB/}
, {Fabtech Motorsports FTS22124BK (F37 FTS22124BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2052/ K2052DB/ K2053DB/ K2053DB}
, {Fabtech Motorsports FTS22129 (F37 FTS22129); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2050/ K2050DB/ K2052/ K2052DB/ K2053B/ K2053DB/ K2054/}
, {Fabtech Motorsports FTS810052 (F37 FTS810052); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS810382 (F37 FTS810382); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
