Fabtech 0'' Lift Kit for 2008-2010 Ford F-550 Super Duty 4WD

K2052 Fabtech Lift Kit Suspension
For [4.0] '' Lift
[Full Front and Rear]

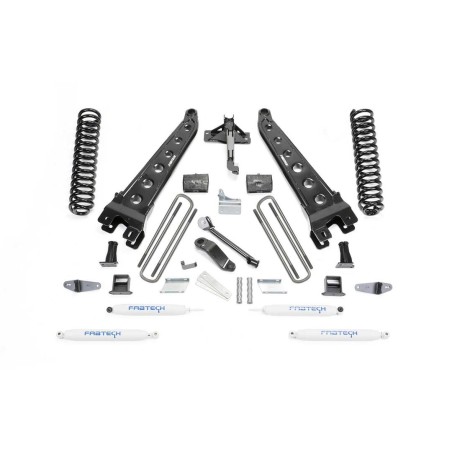

Lift Kit Suspension; Radius Arm System; 6 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; Includes Custom Radius Arms/ Performance Coil Springs/ Drop Pitman Arm/ Front Bump Stops/ Steering Stabilizer Drop Bracket/ Sway Bar Drop Brackets/ Track Bar Relocation Brackets/ ABS Bracket/ Brake Line Brackets/ 4in. Lift Blocks/ All Necessary Hardware/ Installation Sheet
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Coil Spring Rear Lift Type: Leaf Spring Block Maximum Tire Size: 35 x 11 Shock Type: Hydraulic Wheel Backspacing (IN): OEM Minimum Wheel Diameter: OEM Wheel Offset (MM): OEM Shocks: With Shocks In Kit Color: Black Components/ White Shock Absorbers Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Completing this system is a Track Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is an add-a-leaf and a block and U-bolt kit. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22124i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Coil Spring, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 35 x 11, Shock Type: Hydraulic, Wheel Backspacing (IN): OEM, Minimum Wheel Diameter: OEM, Wheel Offset (MM): OEM, Shocks: With Shocks In Kit, Color: Black Components/ White Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22024BK (F37 FTS22024BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2010/ K20101/ K20101DB/ K20102/ K20102DB/ K2010DB/}
, {Fabtech Motorsports FTS22124BK (F37 FTS22124BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2052/ K2052DB/ K2053DB/ K2053DB}
, {Fabtech Motorsports FTS22129 (F37 FTS22129); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2050/ K2050DB/ K2052/ K2052DB/ K2053B/ K2053DB/ K2054/}
, {Fabtech Motorsports FTS7188 (F37 FTS7188); Quantity Required: 2; Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single}
, {Fabtech Motorsports FTS7266 (F37 FTS7266); Quantity Required: 2; Shock Absorber; Performance Twin Tube; Hydraulic; One Year Warranty; Not Adjustable; Without Shock Boots; Single}
