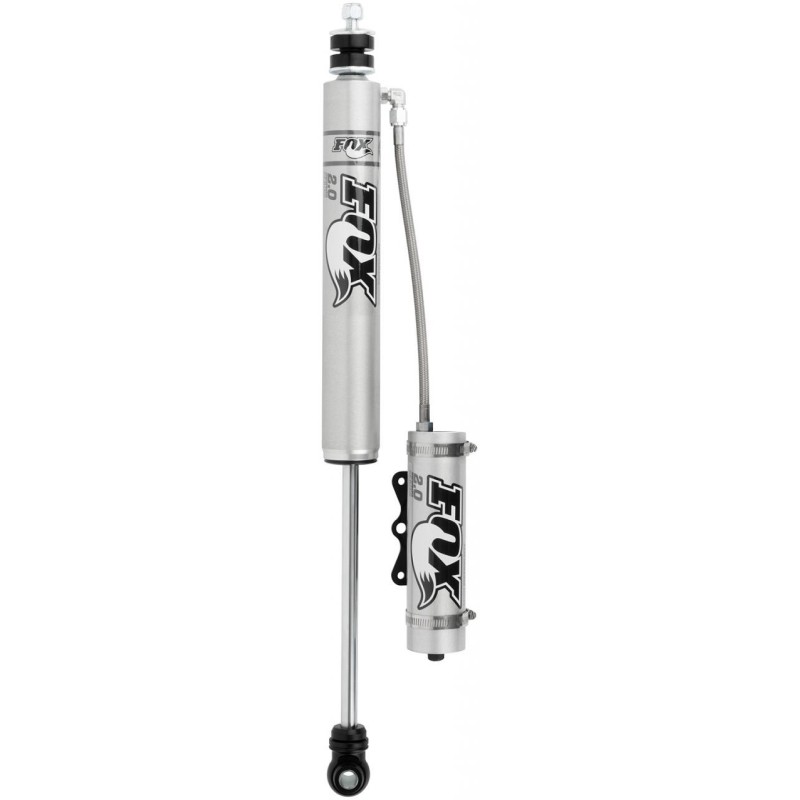

FOX 4-5'' Front Lift Shock Absorber for 2008-2016 Ford F-550 Super Duty 2WD/4WD

985-24-133 FOX Shock Absorber


Extended length, in. :25.8 Inch
Collapsed length, in. :15.7 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single_x000D_
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 25.8 Inch Compressed Length (IN): 15.7 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5_x000D_ The Aluminum bodied 2.0 Performance Series Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions._x000D_ Features & Benefits Body - 2 Inch Metal Impacted 6061-T6 Aluminum Will Resist Rust Over Time. Clear-Anodized For A Durable Finish External Reservoir - 2.0 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized Components - Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Shaft - 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Piston - Race-Developed High-Flow Piston Design. Valving- Application Specific Valving To Maximize Performance Seals - Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Oil - JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Bushings - Quiet Nitrile Rubber Allows For Increased Suspension Articulation Mounting - Direct Replacement For Stock And Aftermarket Lifts Kits Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf_x000D_ https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf_x000D_
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 25.8 Inch, Compressed Length (IN): 15.7 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
