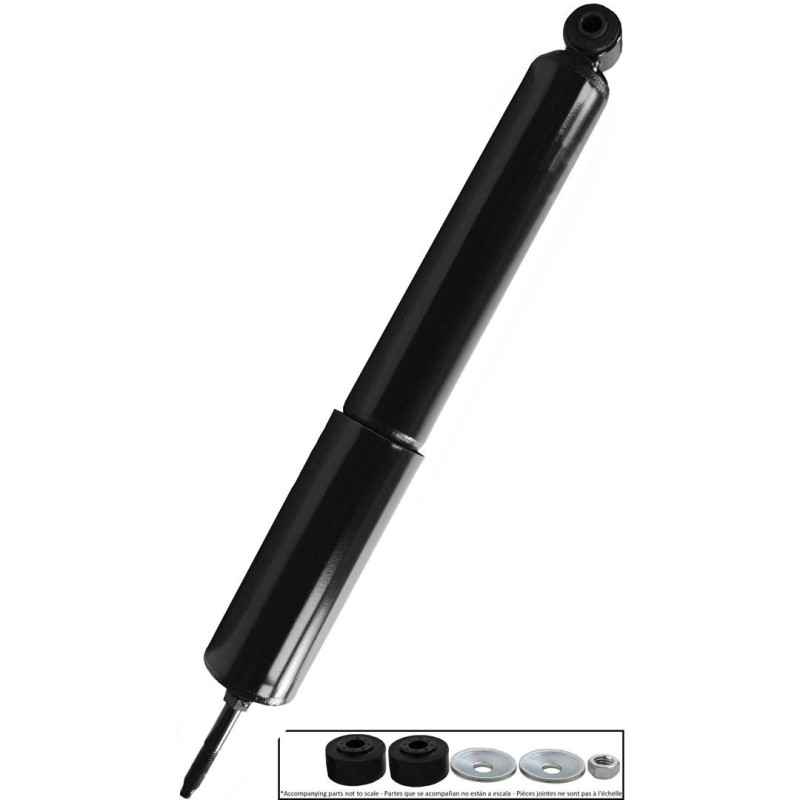

Monroe 0'' FrontShock Absorber for 2005-2022 Ford F-550 Super Duty 2WD/4WD

65167 Monroe Shock Absorber


Extended length, in. :20-7/8 Inch
Collapsed length, in. :13-3/8 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Magnum ™; OE Replacement; Nitrogen Gas Charged; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 20-7/8 Inch Compressed Length (IN): 13-3/8 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Iron Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 The Monroe® Gas-Magnum® 65 shock absorber is the first gas-charged, large-bore shock specifically designed for air spring and taper leaf suspensions. Its nitrogen gas charge provides the fast response essential for today's heavy truck suspension systems. Its extra-large piston bore is engineered to handle the demands of high mileage and severe use. When combined, the gas charge and large-bore provide the consistent control necessary for demanding truck suspensions. Features & Benefits Single-Lip, Low-Friction Oil Seal. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort Resistance And Arc-Welded Mounts, Provides 15,000 Pounds (6,804 Kilogram) Of Tensile Strength For Maximum Durability Patented Unique Hydraulic Rebound Lockout Heavy Wall Drawn Over Mandrel Pressure Tube 10-Stage Full Displaced Valving Hardened Chrome Piston Rod Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 20-7/8 Inch, Compressed Length (IN): 13-3/8 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Iron, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
