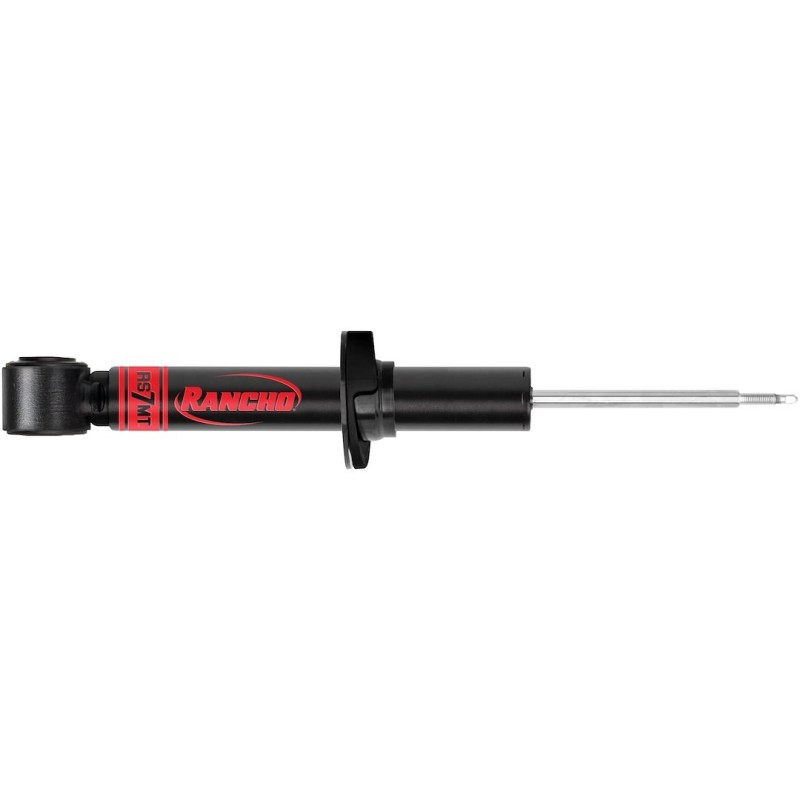

Rancho 1-1.75'' Front Lift Shock Absorber for 2015-2022 GMC Canyon 2WD/4WD

RS77841 Rancho Shock Absorber


Extended length, in. :19.37 Inch
Collapsed length, in. :15.08 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; RS7000MT ™; Nitrogen Gas Charged Mono Tube; Limited Lifetime Warranty; Non Adjustable; Without Shock Boots; Single; Must Re-Use OE Coil Spring
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 19.37 Inch Compressed Length (IN): 15.08 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Black Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 9/16 Inch Valving Type: Non Adjustable Valving Rod Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5 Application tuned for precision on-road and off-road handling, Rancho RS7MT ™ monotube struts are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT struts feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain. Features & Benefits Features A 14 Millimeter Hardened Chrome Piston Rod To Resist Scuffs And Corrosion, Double-Welded Loops At Stress Areas, Double-Strength Closure Method, And Hot Form Reserve Tube Full-Floating Dividing Piston And High-Pressure Nitrogen Gas Maintains Constant Pressure Against The Hydraulic Oil, Reducing Aeration And Shock Fade Sealing System With Integrated Dirt Wiper Helps Keep Moisture, Dirt And Debris From Being Ingested Into The Shock And Contaminating The Oil And Destroying The Internal Seal Internal Rebound Bumper And Shouldered Rubber Bushings Help Reduce Noise, Vibration And Ride Harshness Deflective Disc Valving Features Digressive, Linear Or Progressive Turning Based On Application Requirements For Precision Handling And Performance On- And Off-Road Black Satin Finish With Distinctive Rancho Red Logo For An Eye-Catching Look That Stands Out Large 2 Inch Monotube Body Filled With All-Weather Fluid Allows For Cooler Operation, Increased Vehicle Control, And Ability To Withstand Internal Temperatures Of -40 To 248 Degree Fahrenheit Designed To Fit Right Out Of The Box, Application-Specific Mounting Installs Easily With No Need For Installing Sleeves Or Extra Hardware Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/RAN/InstallationInstructions/FORM01184T.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 19.37 Inch, Compressed Length (IN): 15.08 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Black, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 9/16 Inch, Valving Type: Non Adjustable Valving, Rod Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
