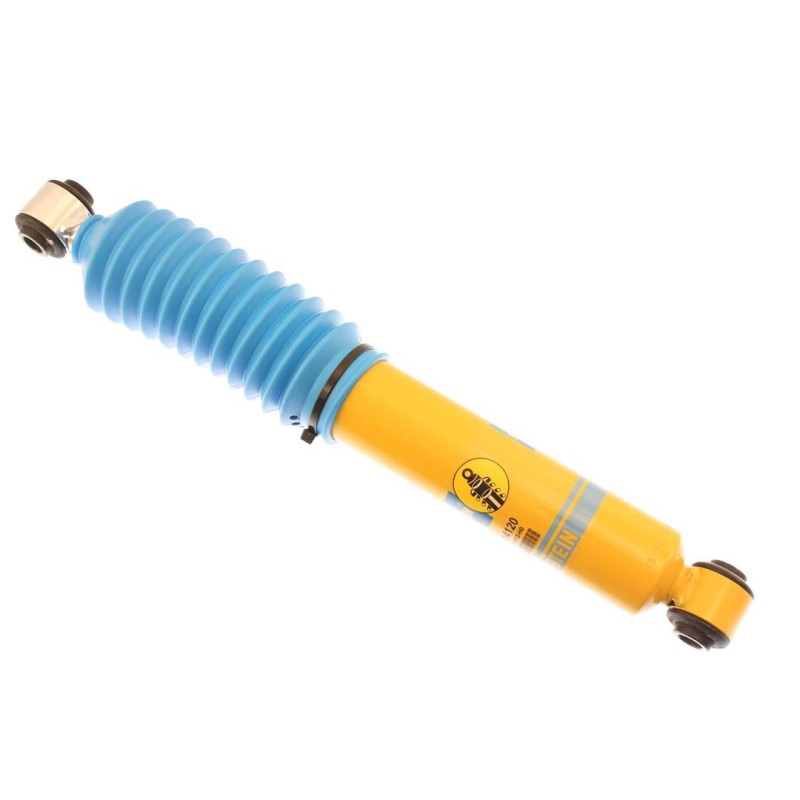

Bilstein 0'' FrontShock Absorber for 1983-1991 GMC S15 Jimmy 4WD

24-014120 Bilstein Shock Absorber


Extended length, in. :16.14 Inch
Collapsed length, in. :11.22 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; B6 (HD) Series Shock; Nitrogen Gas Charged; Limited Lifetime Warranty; Not Adjustable Valving; With Shock Boots; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 16.14 Inch Compressed Length (IN): 11.22 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1.81 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5 Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort. Features & Benefits BILSTEIN Monotube Gas-Pressure Technology Optimum Grip And Enhanced Lane Stability In Day To Day And Extreme Situations Digressive Valving Instantly Reacts To Changing Road Surface Conditions For Maximum Comfort And Control On And Off-Road High Gas Pressure And A Longer Service Life Even When Pulling Trailers Or Driving Off-Road Durable Vulcanized Neoprene Rubber Bushings Individually Fine-Tuned In The BILSTEIN Road Test No Spring Change Required Enhanced Safety Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/Generic_instructions_02.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/Generic_instructions_02.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 16.14 Inch, Compressed Length (IN): 11.22 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1.81 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
