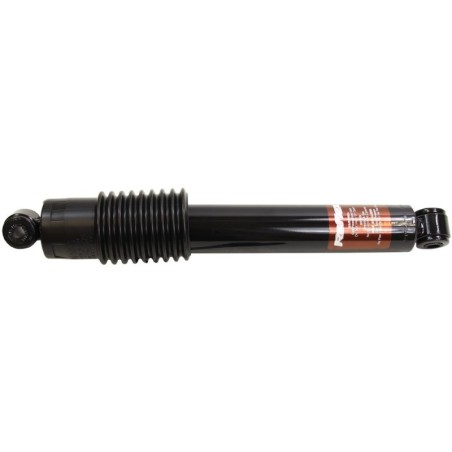

Monroe 0'' FrontShock Absorber for 1983-1990 GMC S15 4WD

911514 Monroe Shock Absorber


Extended length, in. :16-5/8 Inch
Collapsed length, in. :11-3/8 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; Reflex ®; OE Replacement; Nitrogen Gas Charged; Premium Limited Lifetime Warranty; For Performance; Mono-Tube; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 16-5/8 Inch Compressed Length (IN): 11-3/8 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5 Monroe Reflex® monotube shocks are specifically engineered to provide better handling, control and performance for light trucks and SUV's. These shocks feature a high-pressure gas charge that separates the unit internal oil and nitrogen to provide additional spring rate, helping to maximize damping efficiency and control. To further enhance ride control characteristics, Monroe® Reflex® monotube shocks include a hydraulic lockout to cushion the impact as the vehicle suspension is fully extended. Features & Benefits Hydraulic Lockout: Patented Unique Hydraulic Lock-Out Isolates Impact At The Limits Of Suspension Travel All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction High Pressure Nitrogen Gas Charged: High-Pressure Charge (240 To 260 PSI) Provides A Quicker Response For Excellent Vehicle Control Shock Housing: High Strength To Resist Damage And Provide Longer Service Life Nitrocarburized Rod: For Long Service Life Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability Free Floating Dividing Piston: Separates Shock Fluid From High-Pressure Gas Charge Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 16-5/8 Inch, Compressed Length (IN): 11-3/8 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
