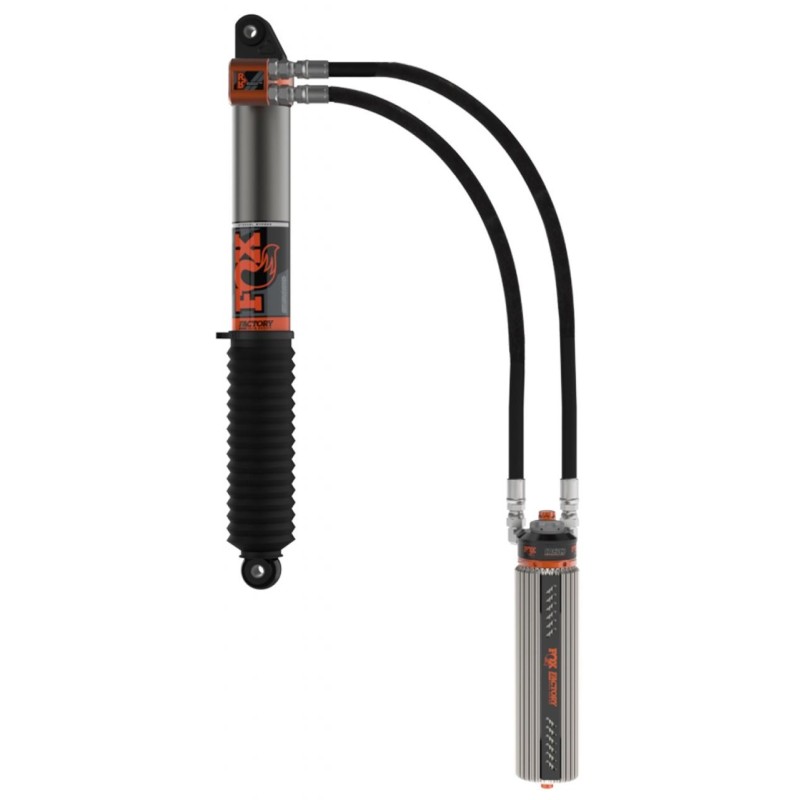

FOX 2-3'' Rear Lift Shock Absorber for 2019-2019 GMC Sierra 1500- New Model 4WD

883-26-105 FOX Shock Absorber


Extended length, in. :27.74 Inch
Collapsed length, in. :17.16 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; Tri-Tube; External Bypass With Reservoir; 7/8 Inch Shaft; Dampening Adjustable; Set Of 2_x000D_
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Tri Tube Adjustable Valving: Yes Extended Length (IN): 27.74 Inch Compressed Length (IN): 17.16 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Gray Quantity: Set Of 2 Universality: Vehicle Specific Rod Diameter (IN): 7/8 Inch Valving Type: Application Specific Valving Ride Height Adjustable: Yes Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: No Includes Boot: Yes Estimated Install Time (Hours): 0.5_x000D_ FOX Factory Race Series 3.0 Internal Bypass shocks for the Chevrolet/GM 1500 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3 Inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style._x000D_ Features & Benefits 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel Hard-Anodized For A Durable Finish Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast Shaft 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Race-Developed High-Flow Piston Design Patented, Internal Bypass Design, Application-Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth Dual Speed Compression Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-326 REV_B.pdf_x000D_
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Tri Tube, Adjustable Valving: Yes, Extended Length (IN): 27.74 Inch, Compressed Length (IN): 17.16 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Gray, Quantity: Set Of 2, Universality: Vehicle Specific, Rod Diameter (IN): 7/8 Inch, Valving Type: Application Specific Valving, Ride Height Adjustable: Yes, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
