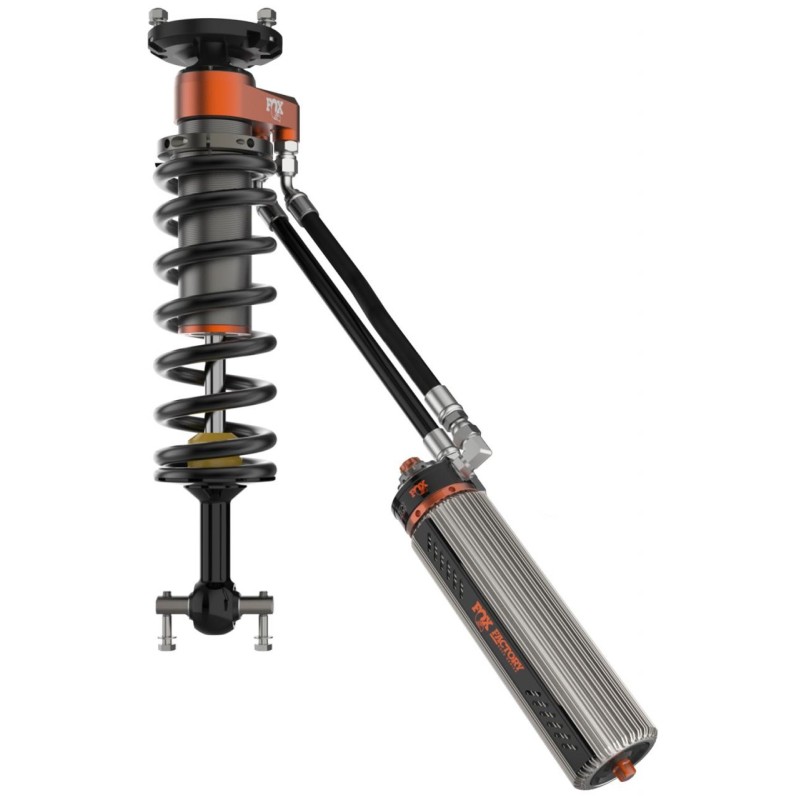

FOX 3-3.5'' Front Lift Coil Over Shock Absorber for 2020-2021 GMC Sierra 1500 4WD

883-06-175 FOX Coil Over Shock Absorber


Upper mount: Strut
Lower Mount: Cross Pin
Coil Over Shock Absorber; 3.0 Factory Series; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Ride Height Non Adjustable; Single Flat End Coil Spring; Black/ Grey/ Orange; With Remote Reservoir/ Shock Absorber/ Adjustment Collar/ Adjustment Knob/ Spring; Set Of 2_x000D_
Attributes Adjustable: Yes Valving Type: Application Specific Valving Shock Type: Gas Charged Upper Mounting Type: Strut Lower Mounting type: Cross Pin Front/Rear Drop (IN): 3-1/2 Inch Front Extended Height (IN): 22.74 Inch Compressed Height (IN): 17.15 Inch Shock Body Color: Gray Shock Body Material: Aluminum Quantity: Set Of 2 Spring Finish: Anodized Spring Color: Black Spring Material: Aluminum Includes Mounting Hardware: No_x000D_ FOX Factory Race Series 3.0 Internal Bypass shocks for the Chevrolet/GM 1500 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3 Inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style._x000D_ Features & Benefits 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel Hard-Anodized For A Durable Finish Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast Shaft 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Race-Developed High-Flow Piston Design Patented, Internal Bypass Design, Application-Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth Dual Speed Compression Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment Limited 1 Year Warranty_x000D_

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-326 REV_B.pdf_x000D_
[Adjustable: Yes, Valving Type: Application Specific Valving, Shock Type: Gas Charged, Upper Mounting Type: Strut, Lower Mounting type: Cross Pin, Front/Rear Drop (IN): 3-1/2 Inch Front, Extended Height (IN): 22.74 Inch, Compressed Height (IN): 17.15 Inch, Shock Body Color: Gray, Shock Body Material: Aluminum, Quantity: Set Of 2, Spring Finish: Anodized, Spring Color: Black, Spring Material: Aluminum, Includes Mounting Hardware: No]
