Fabtech 0'' Lift Kit for 2014-2018 GMC Sierra 1500 4WD

K1109DL Fabtech Lift Kit Suspension
For [4.0] '' Lift
[Full Front and Rear]

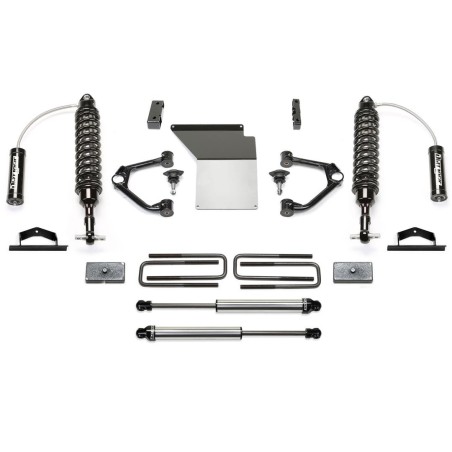

Lift Kit Suspension; Dirt Logic 2.5 Coilover System; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic SS 2.5 Coil Over Remote Reservoir Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black And Silver Components; With Front Coil Overs/ Rear Shock Absorbers/ Front Upper Control Arms With Ball Joints/ Front Skid Plate/ Rear Lift Blocks and U Bolts/ Installation Hardware
Attributes Front Lift Amount (IN): 4 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 33 x 12.50 Shock Type: Gas Charged Wheel Backspacing (IN): 4.50 Minimum Wheel Diameter: 17 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires on 2014 to 2015 K1500's with factory Aluminum suspension. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive off-road use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy-duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against off-road obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and U-Bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and off-road use. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/K1109DL.pdf
[Front Lift Amount (IN): 4 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 33 x 12.50, Shock Type: Gas Charged, Wheel Backspacing (IN): 4.50, Minimum Wheel Diameter: 17, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS21219 (F37 FTS21219); Quantity Required: 1; Lift Kit Component; Component For K1109DL}
