Fabtech 0'' Lift Kit for 2007-2012 GMC Sierra 1500

K1029DL Fabtech Lift Kit Suspension
For [6.0] '' Lift
[Full Front and Rear]

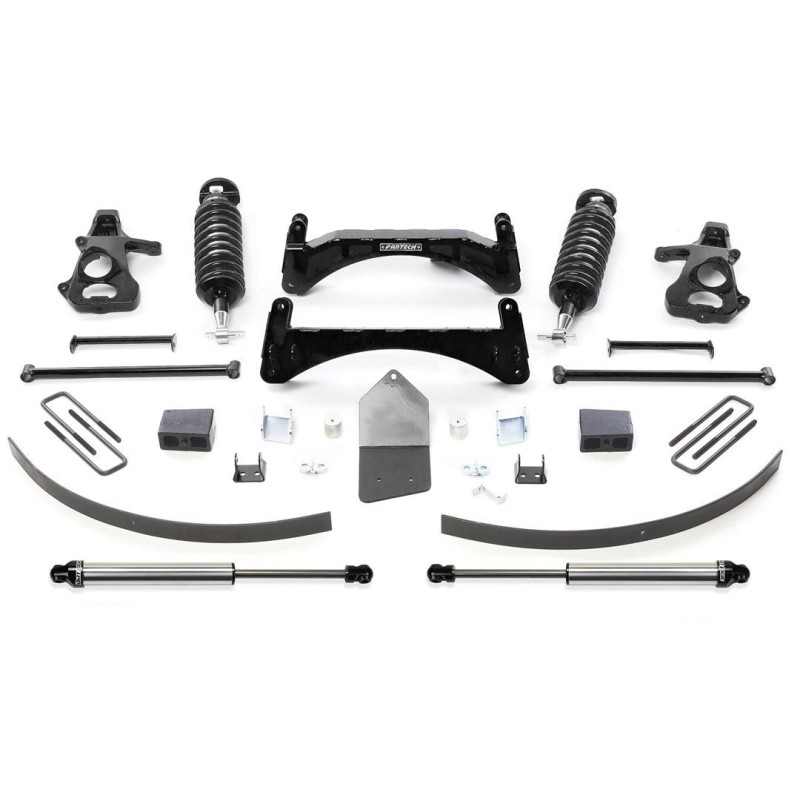

Lift Kit Suspension; Dirt Logic SS; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic SS 4.0 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Rear Add-A-Leaf/ Blocks And U Bolts/ Front Steering Knuckles/ Crossmembers/ Front Differential Skid Plate/ Impact Struts/ Installation Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 6 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Leaf Spring Block Maximum Tire Size: 35 x 12.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 17 Wheel Offset (MM): 13 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Our 6 Inch Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35 Inch tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4 Inch thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. The Performance system offers Dirt Logic 2.5 Shocks in place of the factory front coilover assembly. This system has been properly designed to work with the factory Stabilitrak ® safety functions without reprogramming the vehicle's computer. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT21060i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 6 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 35 x 12.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 17, Wheel Offset (MM): 13, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS21060BK (F37 FTS21060BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K1027/ K1028DB/ K1029DB}
, {Fabtech Motorsports FTS21061BK (F37 FTS21061BK); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K1027/ K1028DB/ K1029DB}
, {Fabtech Motorsports FTS810742 (F37 FTS810742); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS835032 (F37 FTS835032); Quantity Required: 2; Coil Over Shock Absorber; Dirt Logic; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; With}
