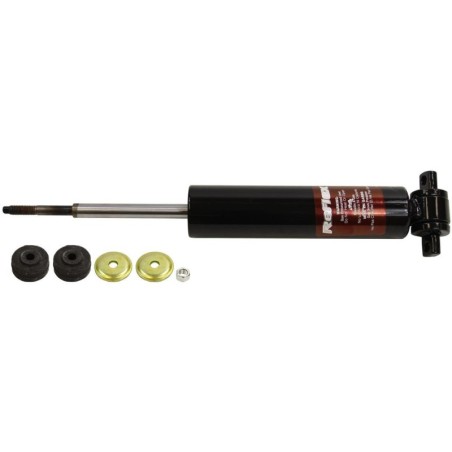

Monroe 0'' FrontShock Absorber for 1994-2003 GMC Sonoma 2WD

911516 Monroe Shock Absorber


Extended length, in. :13-3/8 Inch
Collapsed length, in. :9 Inch
Upper mount: Stud
Lower Mount: Cross Pin
Shock Absorber; Reflex ®; Nitrogen Gas Charged; OE Replacement; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 13-3/8 Inch Compressed Length (IN): 9 Inch Upper Mounting Style: Stud Lower Mounting Style: Cross Pin Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 Monroe Reflex® monotube shocks are specifically engineered to provide better handling, control and performance for light trucks and SUV's. These shocks feature a high-pressure gas charge that separates the unit internal oil and nitrogen to provide additional spring rate, helping to maximize damping efficiency and control. To further enhance ride control characteristics, Monroe® Reflex® monotube shocks include a hydraulic lockout to cushion the impact as the vehicle suspension is fully extended. Features & Benefits Hydraulic Lockout: Patented Unique Hydraulic Lock-Out Isolates Impact At The Limits Of Suspension Travel All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction High Pressure Nitrogen Gas Charged: High-Pressure Charge (240 To 260 PSI) Provides A Quicker Response For Excellent Vehicle Control Shock Housing: High Strength To Resist Damage And Provide Longer Service Life Nitrocarburized Rod: For Long Service Life Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability Free Floating Dividing Piston: Separates Shock Fluid From High-Pressure Gas Charge Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 13-3/8 Inch, Compressed Length (IN): 9 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Cross Pin, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
