Fabtech 0'' Lift Kit for 2019-2022 Ram 2500 4WD

K3184DL Fabtech Lift Kit Suspension
For [5.0] '' Lift
[Full Front and Rear]

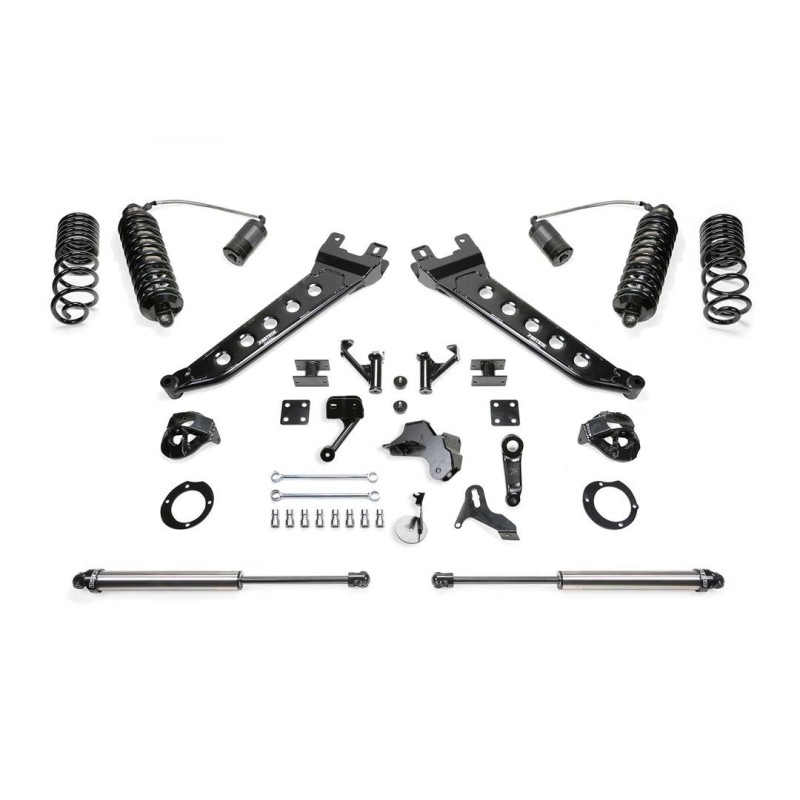

Lift Kit Suspension; Dirt Logic 4.0 ™; 5 Inch Front Lift; 5 Inch Rear Lift; With Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers; Black Components/ Silver Shock Absorbers; With Front Coil Over Shock Mounts/ Rear Coil Springs/ Radius Arms/ Front And Rear Track Bar Brackets/ Pitman Arm/ Bump Stop Spacers/ Stabilizer Bar Links/ Installation Hardware
Attributes Front Lift Amount (IN): 5 Inch Rear Lift Amount (IN): 5 Inch Front Lift Type: Coil Spring Rear Lift Type: Coil Spring Maximum Tire Size: 37 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 17 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Improving on the Ram suspension design, Fabtech offers their trademark Radius Arms in a complete lift kit. These exclusive tubular Radius Arms have recognizable dimple die side plates for superior strength and a signature of quality. The rugged Arms provide increased caster for use with oversized tires and lifted suspension heights. For maximum suspension damping, this Ram lift kit features the massive stainless steel Dirt Logic 4.0 Coilovers. These top shelf Coilovers bolt to the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket. Heavy-Duty 1/4 Inch thick steel front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. For the rear, this lift kit has the perfect balance between ride quality and retaining the factory carrying capacity. By utilizing a dual rate spring design, it provides a good highway ride in the first stage of compression then the second stage handles heavy loads. This high end lift kit system is the ultimate suspension upgrade for Ram 2500. Features & Benefits Fabtech's Trademark Radius Arms With Recognizable Dimple Die Side Plates Providing Additional Strength And Increased Caster Bolt-On Ram Coilover Conversion For The Best Ride Quality On And Offroad Heavy-Duty Track Bar Drop Brackets Center The Axles Under Vehicle For Proper Tracking Dual Rate Rear Coil Springs For Factory Load Capacity And A Smooth Ride Provides Excellent Damping For Offroad Use Limited Lifetime Warranty


[Front Lift Amount (IN): 5 Inch, Rear Lift Amount (IN): 5 Inch, Front Lift Type: Coil Spring, Rear Lift Type: Coil Spring, Maximum Tire Size: 37 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 17, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS23220 (F37 FTS23220); Quantity Required: 1; Lift Kit Component; Component For K3184}
, {Fabtech Motorsports FTS23221 (F37 FTS23221); Quantity Required: 1; Lift Kit Component; Component For K3184}
, {Fabtech Motorsports FTS835102 (F37 FTS835102); Quantity Required: 2; Coil Over Shock Absorber; Dirt Logic; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; Without}
