Fabtech 0'' Lift Kit for 2019-2022 Ram 2500 4WD

K3180DL Fabtech Lift Kit Suspension
For [5.0] '' Lift
[Full Front and Rear]

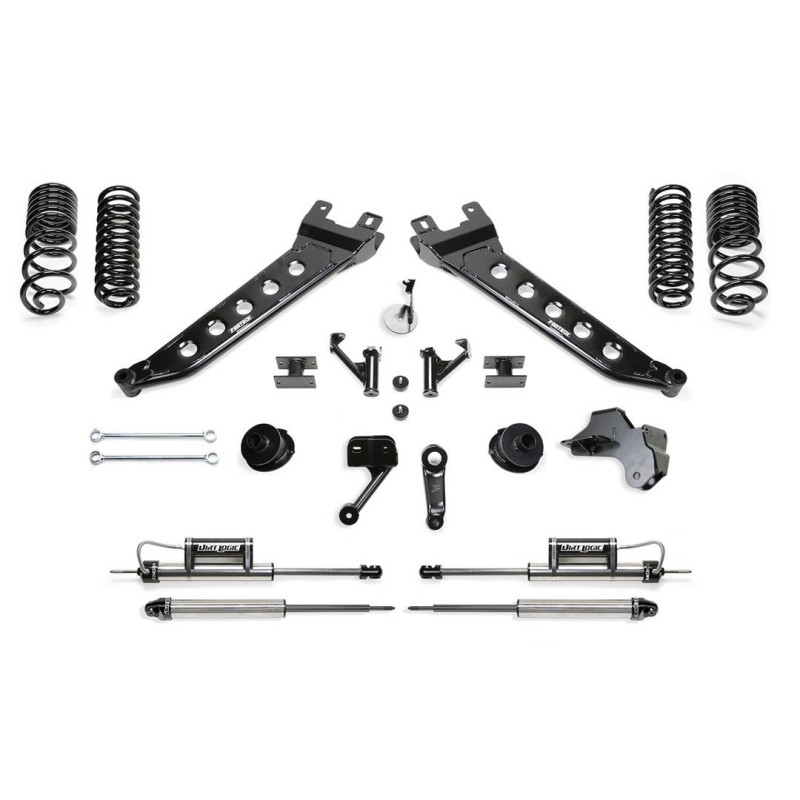

Lift Kit Suspension; Dirt Logic 2.25 ™; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Dirt Logic Shock Absorbers; Black Components/ Silver Shock Absorbers; With Front And Rear Coil Springs/ Radius Arms/ Front And Rear Track Bar Brackets/ Pitman Arm/ Bump Stop Spacers/ Stabilizer Bar Links/ Installation Hardware
Attributes Front Lift Amount (IN): 5 Inch Rear Lift Amount (IN): 5 Inch Front Lift Type: Coil Spring Rear Lift Type: Coil Spring Maximum Tire Size: 37 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 17 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Improving on the Ram suspension design, Fabtech offers their trademark Radius Arms in a complete lift kit system. These exclusive tubular Radius Arms have recognizable dimple die side plates for superior strength and a signature of quality. The rugged Arms provide increased caster for use with oversized tires and lifted suspension heights. The factory front Ram coil spring has a noticeable bow to it with a very high spring rate for the weight rating of the vehicle. This creates a harsh ride with a nervous feel from the suspension. To correct this, Fabtech uses a straight vertical coil design. In order to utilize a straight coil, the lower spring seat mount must be modified via a Fabtech patented angular spring mount that attaches to the stock seat. This eliminates the bow to the spring and allows for a lower rate with a straight coil for a supple ride without sacrificing load carrying capacity. A Fabtech exclusive. For the rear, this lift kit has the perfect balance between ride quality and retaining the factory carrying capacity. By utilizing a dual rate spring design, it provides a good highway ride in the first stage of compression and then the second stage handles heavy loads. Heavy-Duty 1/4 Inch thick steel front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. A Fabtech innovation with this Ram lift kit is the heavy-duty steel front bump extensions. They retain the stock bump stop cushions for progressive damping and will not allow the suspension to over travel. This is a superior feature compared to replacement long length urethane bump stops as they can push out under harsh conditions. Features & Benefits Fabtech's Trademark Radius Arms With Recognizable Dimple Die Side Plates Providing Additional Strength And Increased Caster Front Straight Coil Springs With Fabtech's Patented Angled Mounts For Smooth Ride Heavy-Duty Track Bar Drop Brackets Center The Axles Under Vehicle For Proper Tracking Dual Rate Rear Coil Springs For Factory Load Capacity And A Smooth Ride Provides Excellent Damping For Offroad Use Limited Lifetime Warranty


[Front Lift Amount (IN): 5 Inch, Rear Lift Amount (IN): 5 Inch, Front Lift Type: Coil Spring, Rear Lift Type: Coil Spring, Maximum Tire Size: 37 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 17, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS23216 (F37 FTS23216); Quantity Required: 1; Lift Kit Component; Component For K3180}
, {Fabtech Motorsports FTS23217 (F37 FTS23217); Quantity Required: 1; Lift Kit Component; Component For K3180}
, {Fabtech Motorsports FTS801032 (F37 FTS801032); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; With Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS811042 (F37 FTS811042); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
