Fabtech 0'' Lift Kit for 2013-2018 Ram 3500 4WD

K3058 Fabtech Lift Kit Suspension
For [5.0] '' Lift
[Full Front and Rear]

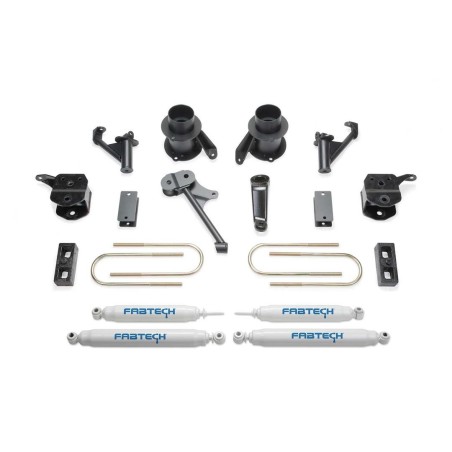

Lift Kit Suspension; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; With Front Coil Spring Spacers/ Radius Arm Brackets/ Bump Stop Extensions/ Leaf Spring Block Kit/ U Bolts/ Hardware
Attributes Front Lift Amount (IN): 5 Inch Rear Lift Amount (IN): 5 Inch Front Lift Type: Coil Spring Spacer Rear Lift Type: Leaf Spring Block Maximum Tire Size: 37 x 13.50 Shock Type: Hydraulic Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 17 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ White Shock Absorbers This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The stock coil springs are retained with angular steel spacers to retain the factory spring bow. This is an important feature as Chrysler designed the bow to aid in handling and ride. Flat spacers do not provide this. The factory Radius Arms are relocated with heavy-duty 1/4 Inch thick steel brackets for proper caster. A Track Bar drop bracket centers the axle under the vehicle. A Fabtech exclusive on this system is the steel front bump extensions. They will not blow out like long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech steel extensions. The rear suspension receives a block and U-bolt system with bump stop extensions. The 5 Inch Basic System will clear 37 Inch tall tires and is available with Fabtech Performance Twin Tube shocks . Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT23047i.pdf
[Front Lift Amount (IN): 5 Inch, Rear Lift Amount (IN): 5 Inch, Front Lift Type: Coil Spring Spacer, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 37 x 13.50, Shock Type: Hydraulic, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 17, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ White Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS23047 (F37 FTS23047); Quantity Required: 1; Lift Kit Component; Component For K3058 - Box 1 Of 1 - 5 Inch Lift; With Performance Shock Absorber/ Front Coil}
