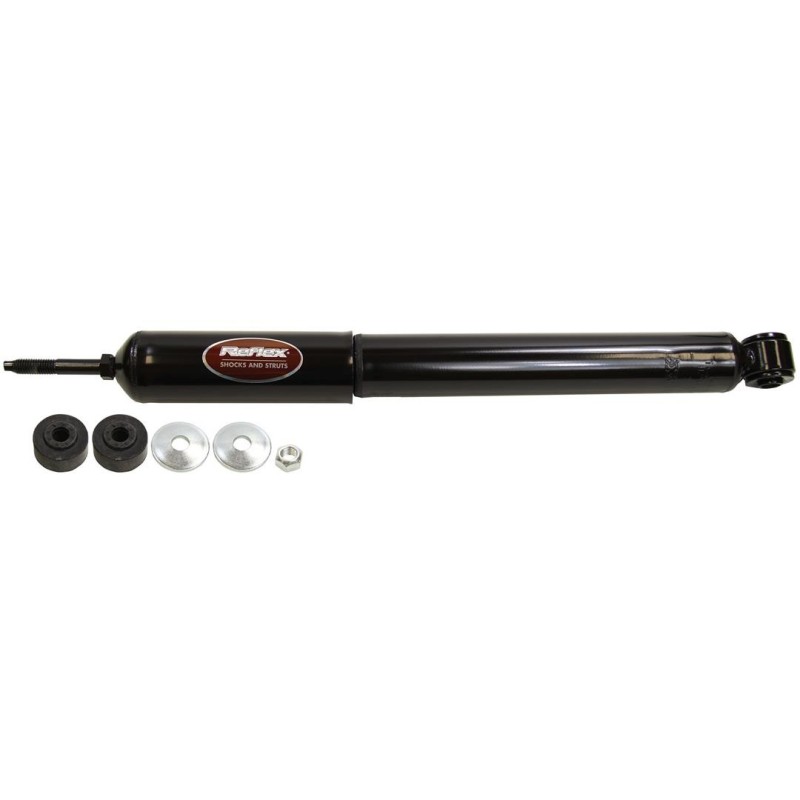

Monroe 0'' FrontShock Absorber for 2013-2024 Ram 3500 2WD/4WD

911198 Monroe Shock Absorber


Extended length, in. :21.38 Inch
Collapsed length, in. :14-3/4 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; Reflex ®; OE Replacement; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; Without Shock Boots; Black; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 21.38 Inch Compressed Length (IN): 14-3/4 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Black Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Rod Displaced Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 Truck shock absorbers valving technology automatically adjusts the shock to absorb the impact, leaving the shock with greater control for improved handling, safety, and comfort. Features & Benefits ASD Technology: Innovative Valving Provides Greater Control For Handling, While Improving Ride Comfort All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration 2-1/4 Inch Or 2 Inch Diameter Reserve Tube: Allows More Fluid Carrying Capacity For A Cooler Running Unit 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units; Enhanced Stability By Reducing Body Roll Rate And Dive In Evasive Manoeuvers Or Tight Turns 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life; High-Pressure Gas Charge Helps Deliver Precise And Consistent Response Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 21.38 Inch, Compressed Length (IN): 14-3/4 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Black, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Rod Displaced Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
